Customized Request Self-Lubricating Bearing For Water Lubrication Hydropower Systems

Product Details:

Place of Origin:	China
Certification:	GB/T19001-2016/ISO9001:2015, CHINA CLASSIFICATION SOCIETY

Detail Information

Place of Origin:

China

Certification:

GB/T19001-2016/ISO9001:2015, CHINA CLASSIFICATION SOCIETY

Replacement Brand:

Thordon

Type Of Lubricant:

Water Lubricated Bearing

Bearing Structure:

Split Plain Bearing

Bushing Material:

Elastomeric Polymer Alloy

Bearing Direction:

Radial

Customization:

Customized

Applications:

Hydro Turbine

Highlight:

High Light

Highlight:

Hydropower Systems Hydro Bearing

Radial Hydro Bearing

Customized Request Self Lubricating Bearing

Trading Information

Minimum Order Quantity:

Price:

USD, CNY

Packaging Details:

Cartoon

Delivery Time:

15working days

Payment Terms:

T/T

Supply Ability:

10000

Product Description

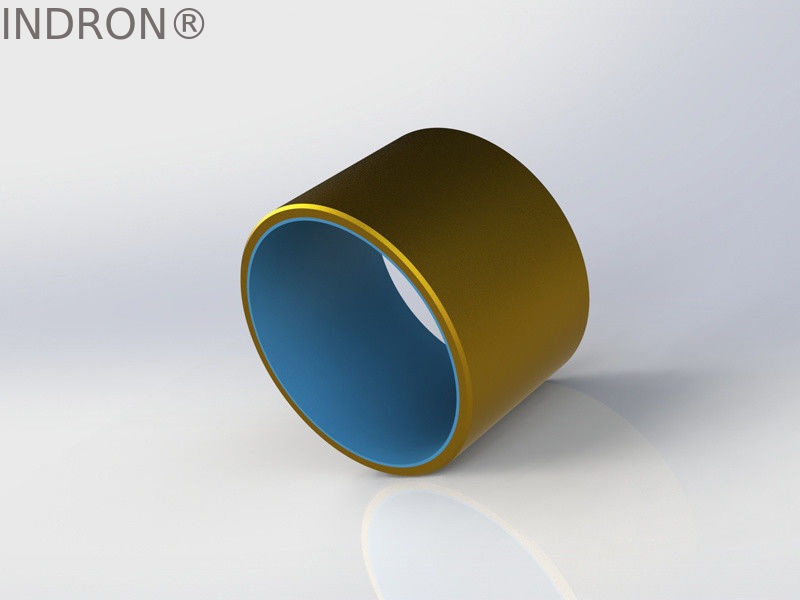

Hydropower Bearing Bushing

INDRON®hybron bearing can be flexibly assembled into split bearing with dovetail slat bearing bush, which is convenient for installation and maintenance without shaft extension, and more reliable when compared with the interference installation of cylinder bearing. If necessary during overhaul, the slat bearing bushes can be conveniently replaced, and a variety of homogeneous elastoplastic polymer alloy dovetail slat bearing bushes of different material grades can be mixed or staggered in one bearing, so that the bearing achieves wear resistance and self-lubricating, and effectively controls the balance of wobble.

Specifications of Dovetail Slat Bearing Bush

Dovetail slat bearing bush		Groove width			Number of slats	Slat chord width		Thickness	L/φ Length ratio L/φ
Dovetail slat bearing bush		W, nun	Tolerance	Ra	n	CW, mm	Tolerance	t, mm	TSTN (PREM)	hRBR
1	TQDS40	40	±0.04	3.2	10/12	40.30	+0.40/-0.00	24±1	1.2-1.8	1.5-2.0
2	TQDS45	45			12/14	45.30		24±1
3	TQDS50	50			12/14	50.30		24±1
4	TQDS55	55			14/16	55.35	+0.45/-0.00	24±1
5	TQDS60	60			14/16	60.35	+0.45/-0.00	24±1
6	TQDS65	65			14/16	65.40	+0.50/-0.00	24±1
7	TQDS70	70	±0.05		14/16	70.40		24±1
8	TQDS75	75			16/18	75.40		24±1
9	TQDS80	80			16/18	80.45	+0.55/-0.00	24±1
10	TQDS85	85			16/18	85.45	+0.55/-0.00	24±1

Note:

There are three grades of dovetail slat bearing bush materials to choose from. White TSTN is selected by default for water pumps. In addition, the materials are marked with TQDS40/xxxx (the last four characters represent materials). Tolerance is controlled under the conditions of ambient temperature of 21-28ºC and relative humidity of 40-60% when the slats leave the factory. Beyond the environmental condition, the slat size may be affected by environmental conditions and exceed the tolerance range. In such case, please submit the conditions of measurement environment and slat size, and contact the manufacturer to confirm whether it is reasonable and available. (The maximum length of a slat is 830mm, which can be customized on demand).
