Water-Lubricated Strip Integral Guide Bearing Customization for Self-Lubricating Design

Product Details:

Place of Origin:	China
Certification:	GB/T19001-2016/ISO9001:2015, CHINA CLASSIFICATION SOCIETY

Detail Information

Place of Origin:

China

Certification:

GB/T19001-2016/ISO9001:2015, CHINA CLASSIFICATION SOCIETY

Replacement Brand:

Thordon

Type Of Lubricant:

Water Lubricated Bearing

Bearing Structure:

Split Plain Bearing

Bushing Material:

Elastomeric Polymer Alloy

Bearing Direction:

Radial

Customization:

Customized

Applications:

Vertical Pump

Highlight:

High Light

Highlight:

Customization Strip Integral Guide Bearing

Water-Lubricated Strip Integral Guide Bearing

Trading Information

Minimum Order Quantity:

Price:

USD, CNY

Packaging Details:

Cartoon

Delivery Time:

15working days

Payment Terms:

T/T

Supply Ability:

10000

Product Description

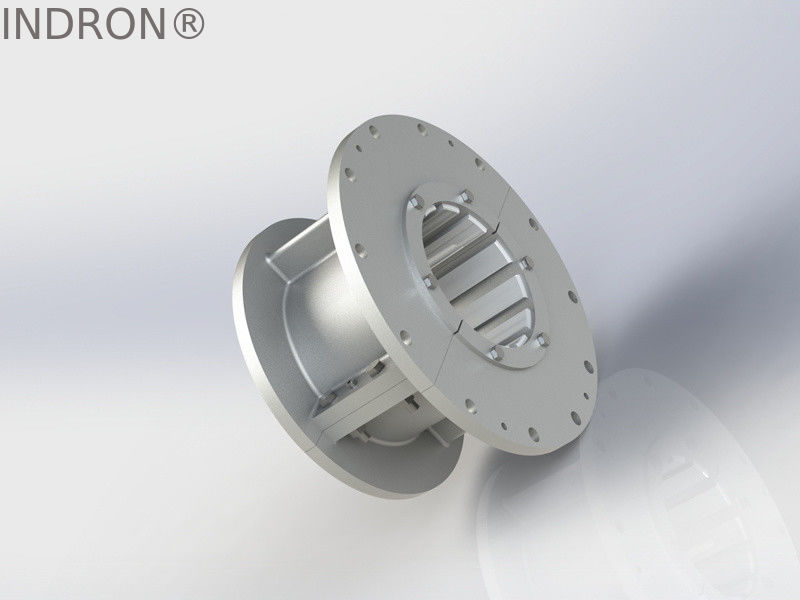

Strip Integral Type Pump Guide Bearing

INDRON® hybron bearing can be flexibly assembled into split bearing with dovetail slat bearing bush, which is convenient for installation and maintenance without shaft extension, and more reliable when compared with the interference installation of cylinder bearing. If necessary during overhaul, the slat bearing bushes can be conveniently replaced, and a variety of homogeneous elastoplastic polymer alloy dovetail slat bearing bushes of different material grades can be mixed or staggered in one bearing, so that the bearing achieves wear resistance and self-lubricating, and effectively controls the balance of wobble.

Specifications of Dovetail Slat Bearing Bush

Dovetail slat bearing bush		Groove width			Number of slats	Slat chord width		Thickness	L/φ Length ratio L/φ
Dovetail slat bearing bush		W, nun	Tolerance	Ra	n	CW, mm	Tolerance	t, mm	TSTN (PREM)	hRBR
1	TQDS40	40	±0.04	3.2	10/12	40.30	+0.40/-0.00	24±1	1.2-1.8	1.5-2.0
2	TQDS45	45			12/14	45.30		24±1
3	TQDS50	50			12/14	50.30		24±1
4	TQDS55	55			14/16	55.35	+0.45/-0.00	24±1
5	TQDS60	60			14/16	60.35	+0.45/-0.00	24±1
6	TQDS65	65			14/16	65.40	+0.50/-0.00	24±1
7	TQDS70	70	±0.05		14/16	70.40		24±1
8	TQDS75	75			16/18	75.40		24±1
9	TQDS80	80			16/18	80.45	+0.55/-0.00	24±1
10	TQDS85	85			16/18	85.45	+0.55/-0.00	24±1

Water-Lubricated Strip Integral Guide Bearing Customization for Self-Lubricating Design 0

Water-Lubricated Strip Integral Guide Bearing Customization for Self-Lubricating Design 1
