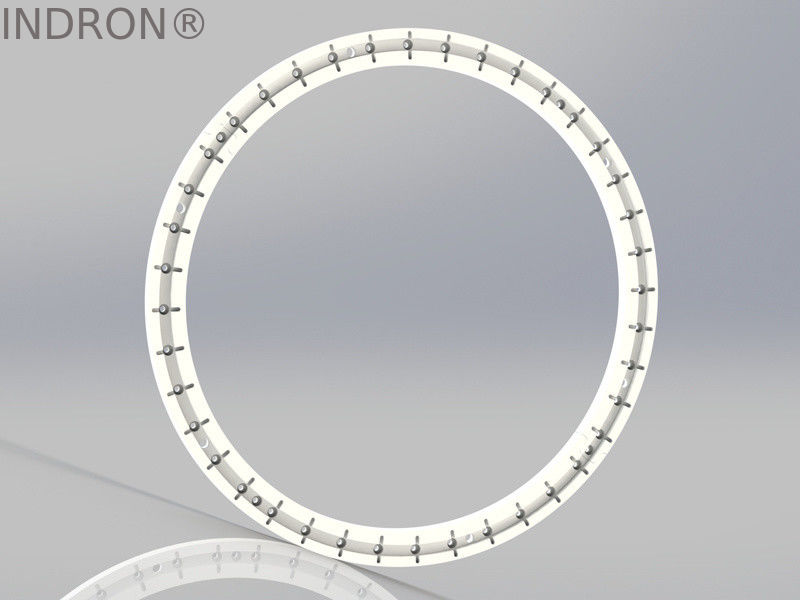

Heavy Duty Elastomeric Polymer Oil Deflector Customization Rotary Seals

Product Details:

Place of Origin:	China
Certification:	GB/T19001-2016/ISO9001:2015, CHINA CLASSIFICATION SOCIETY

Detail Information

Place of Origin:

China

Certification:

GB/T19001-2016/ISO9001:2015, CHINA CLASSIFICATION SOCIETY

Highlight:

High Light

Highlight:

Heavy Duty Oil Deflector

Elastomeric Polymer Rotary Seals

OEM high pressure rotary shaft seals

Trading Information

Minimum Order Quantity:

Price:

USD, CNY

Packaging Details:

Cartoon

Delivery Time:

15working days

Payment Terms:

T/T

Supply Ability:

10000

Product Description

INDRON® oil and gas sealing material has excellent mechanical properties, good rigidity, toughness, hardness, wear resistance, small permanent compression set, excellent high and low temperature resistance, and excellent aging resistance. It is mainly used to prevent lubricating oil from leaking out or oil mist overflowing in the oil tank.

Performance	Parameters
Density	(1.90~2.00)g/cm³

Shore D Hardness	67.0~75.0

Glass Transition Temperature	≥250ºC

Tensile Strength	≥38Mpa

Bending Strength	≥80Mpa

Compressive Strength	≥70Mpa

Impact Strength	≥7.0KJ/m²

Coefficent of Friction	0.12~0.18

Volume Resistivity	≤50

Material Grade
Bearing(lining)	INDRON®TSTN	INDRON®HRBR	INDRON®HAWF	INDRON®UNIV	INDRON®PLAT
Material	Synthetic Engineering Elastomers	Synthetic Engineering Elastomers	SyntheticEngineering Elastomers	Synthetic Engineering Elastomers	Synthetic Engineering Elastomers
Recommended Workplace	Guide Bearings & Seals	Guide Bearings& Seals	Guide Bearings & Seals	Guide van, connecting rod bushing	Guide vane, connecting rod bushing
Temperature Limit	70℃	70℃	70℃	70℃	70℃
Dry Rub	Yes	low speed	low speed	Yes	Yes
Acid Resistance	limit	limit	limit	limit	limit
Alkaline Resistant	limit	limit	limit	limit	limit
Hydrocarbon Suitability	Yes	Yes	Yes	Yes	Yes
Abrasion Resistance	good	excellent	excellent	good	good
Friction Pair(bushing)	bronze	HRC40	HRC40	HRC40	HRC40
Friction Pair(bushing)	Stainless	recommend	recommend	recommend	recommend
Typical Application	water, sea water	water, sea water	water, sea water	water, sea water	water, sea water
Typical Application	Most fluids(pH 5-10)	Most fluids(pH5-10)	Most fluids(pH5-10)	Most fluids(pH 5-10)	Most fluids(pH5-10)
Note	Lowest coefficient of friction,suitable for dry running applications, good wear resistance	Use silt water under moderate grinding conditions	Use ofsilt-containing water under high grinding conditions. Contains abrasion resistant	high load capacity	high load capacity
