Flame-Resistant Hydrodynamic Bearing Elastomeric Polymer Alloy Bushing Cold-Resistant

Product Details:

Place of Origin:	China
Certification:	GB/T19001-2016/ISO9001:2015, CHINA CLASSIFICATION SOCIETY

Detail Information

Place of Origin:

China

Certification:

GB/T19001-2016/ISO9001:2015, CHINA CLASSIFICATION SOCIETY

Replacement Brand:

Thordon

Type Of Lubricant:

Water Lubricated Bearing

Bearing Structure:

Split Plain Bearing

Bushing Material:

Elastomeric Polymer Alloy

Bearing Direction:

Radial

Customization:

Customized

Applications:

Vertical Pump

Highlight:

High Light

Highlight:

Elastomeric Polymer Alloy Bushing

Flame-Resistant Elastomeric Polymer Alloy Bushing

Trading Information

Minimum Order Quantity:

Price:

USD, CNY

Packaging Details:

Cartoon

Delivery Time:

15working days

Payment Terms:

T/T

Supply Ability:

10000

Product Description

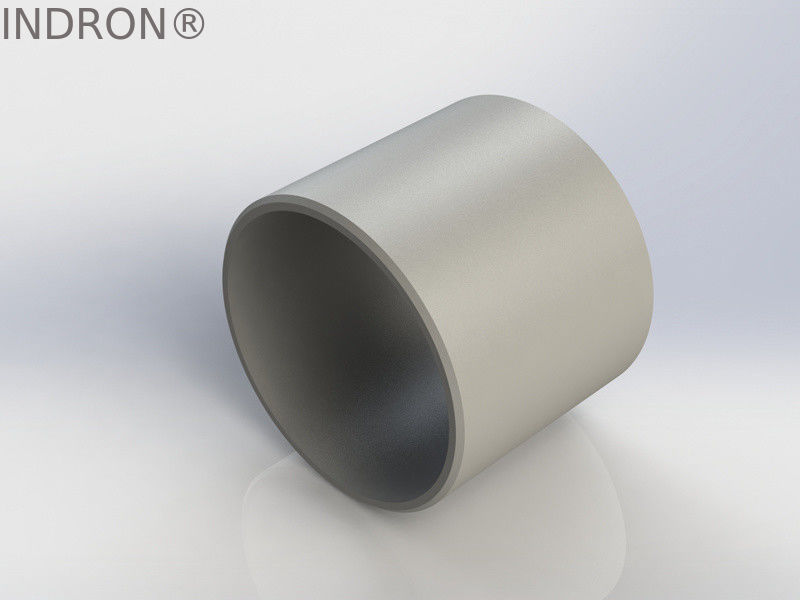

Hydropower Bearing Bushing → PLAT (Integral Type)

Compared with regular copper-based mosaic graphite bearings, INDRON^® guide-vane, connecting-rod and regulating-ring bearings have larger contact area and no lubricating oil is required. The metal-based cladding can effectively protect shaft necks from wear and tear. INDRON^® guide-vane, connecting-rod and regulating-ring bearings can effectively cushion the vibration resulting from opening and closing of a guide vane and avoid cracking upon impacts.

Rigid, tough and wear-resistant, suitable for impulsive and vibrating loads, maintenance-free.
Bonding of long-termed lubricative particles, stable lubricating effects, low friction, and wear.
Effective protection of the shaft neck due to full coverage of the shaft neck.
A homogeneous self-lubricating material with reliable performances.

Specifications of Dovetail Slat Bearing Bush

Dovetail slat bearing bush		Groove width			Number of slats	Slat chord width		Thickness	L/φ Length ratio L/φ
Dovetail slat bearing bush		W, nun	Tolerance	Ra	n	CW, mm	Tolerance	t, mm	TSTN (PREM)	hRBR
1	TQDS40	40	±0.04	3.2	10/12	40.30	+0.40/-0.00	24±1	1.2-1.8	1.5-2.0
2	TQDS45	45			12/14	45.30		24±1
3	TQDS50	50			12/14	50.30		24±1
4	TQDS55	55			14/16	55.35	+0.45/-0.00	24±1
5	TQDS60	60			14/16	60.35	+0.45/-0.00	24±1
6	TQDS65	65			14/16	65.40	+0.50/-0.00	24±1
7	TQDS70	70	±0.05		14/16	70.40		24±1
8	TQDS75	75			16/18	75.40		24±1
9	TQDS80	80			16/18	80.45	+0.55/-0.00	24±1
10	TQDS85	85			16/18	85.45	+0.55/-0.00	24±1

Note:

There are three grades of dovetail slat bearing bush materials to choose from. White TSTN is selected by default for water pumps. In addition, the materials are marked with TQDS40/xxxx (the last four characters represent materials). Tolerance is controlled under the conditions of ambient temperature of 21-28ºC and relative humidity of 40-60% when the slats leave the factory. Beyond the environmental condition, the slat size may be affected by environmental conditions and exceed the tolerance range. In such case, please submit the conditions of measurement environment and slat size, and contact the manufacturer to confirm whether it is reasonable and available. (The maximum length of a slat is 830mm, which can be customized on demand).
