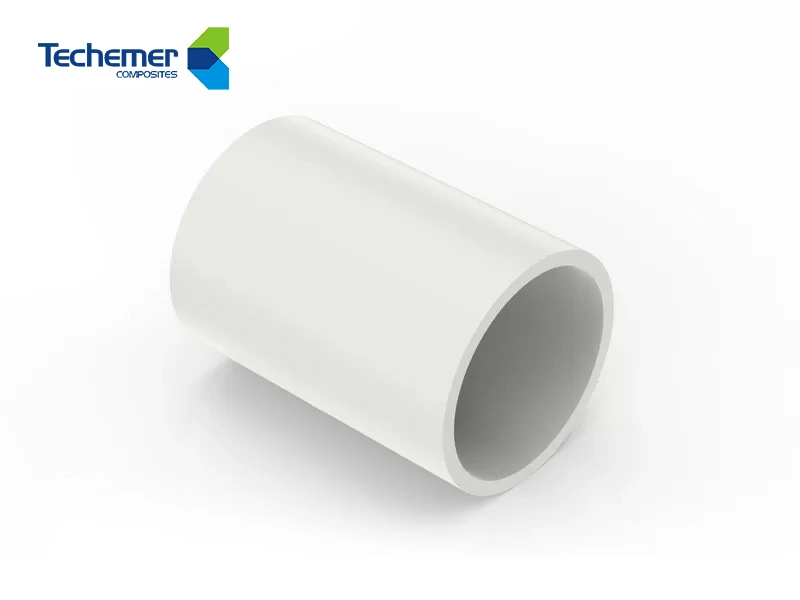

TSTN Rough Material for Pump Hydro Marine Bearing Bushing Replacement to THORDON SXL
INDRON® TSTN is a high-performance self-lubricating and wear-resistant material, specifically designed for heavy-duty applications such as water pump guide bearings, marine rudder bearings, and stern bearings.
Minimum Order Quantity: 1
Price: USD, CNY
Packaging Details: Cartoon
Delivery Time: 15working days
Payment Terms: T/T
Supply Ability: 10000
Place of Origin: China
Certification: GB/T19001-2016/ISO9001:2015, China Classification Society
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
INDRON® TSTN is a high-performance self-lubricating and wear-resistant material, specifically designed for heavy-duty applications such as water pump guide bearings, marine rudder bearings, and stern bearings.
Its unique elastoplastic alloy combines micro-crystalline structures with high-efficiency anti-pressure particles, achieving an exceptional balance of low friction and high wear resistance. It performs reliably even under dry-start conditions or insufficient lubrication.
Key Advantages
Self-Lubricating and Wear-Resistant
INDRON® TSTN incorporates durable self-lubricating particles, offering low wear in both dry friction and medium liquid environments, surpassing traditional sliding bearing materials in durability.
Dry-Start and Lubrication Flexibility
Designed to withstand insufficient or intermittent lubrication, the material effectively prevents adhesive wear, making it suitable for challenging operating conditions.
Outstanding Load-Bearing Capacity
The dynamic surface pressure can reach up to 10 MPa, supporting high-load operations with ease.
Versatile Applications
Ideal for guide bearings, thrust bearings, impeller rings, and more across various types of pumps. Available in multiple configurations, including integrated, split, bush bearings, centrifugal coatings, and multi-layer structures, to meet diverse customer needs.
Eco-Friendly and Highly Durable
The material delivers superior performance and longevity under various conditions, including muddy water, clean water, non-lubrication, and impact loads, reducing maintenance costs and improving reliability.
Common guide bearing materials
|
Comparison of material performance of water-conductive bearings |
INDRON TSTN |
THORON SXL |
||
|
Properties |
Unit |
Test Method |
Typical Value |
|
|
Physical Property |
||||
|
Density |
g/cm3 |
ASTM D792-08 |
1.17 |
1.16 |
|
Mechanical Properties |
||||
|
Tensile Strength |
MPa |
ASTM D638-08 |
40.3 |
44.0 |
|
Elongation at Break |
% |
ASTM D638-08 |
199 |
230 |
|
Shore Type D Hardness |
. |
ASTM D638-08 |
65 |
66 |
|
Compressive Strength(10%) |
MPa |
ASTM D695-08 |
23 |
— |
|
Modulus of Compression |
MPa |
ASTM D695-08 |
430 |
486 |
Common guide bearing materials
|
Bearing type |
INDRON bearing |
Rubber bearing |
Babbitt alloy bearing |
|
Characteristics |
The performance is close thordon, which can use more equipment assembly methods. In addition to traditional installations by freezing and pressurizing. It can also be installed by coating reactive thermal polymerization Dx and cold sticking. |
It has a long history and mature manufacturing process, featured by wear resistance, anti-seismic, impact resistance, convenient assembly/disassembly and low price (only 20% of ceramic bearings price) |
Wear resistance and impact resistance require a set of more complicated sealing and lubricating devices and mechanisms. |
|
Lubricating requirements |
Clean water can be used for lubrication or 150s dry start according to the material grades. |
Clean industrial water |
Grease lubrication requires a grease supply lubrication system. |
|
Working temperature |
≤70°C |
≤50°C |
≤65°C Short time up to 80°C |
|
Application site |
For pumping stations short of clean water or pumping stations requiring short-term dry friction, hRBR grade is suitable for water quality with moderate sediment content. |
Extensive application in any pumping stations with clean water sources. |
The liquid of the pump itself cannot be used for bearing lubrication in the pumping station. |
Why It Matters: INDRON® TSTN provides a reliable, long-lasting, and flexible solution for heavy-duty applications, catering to real-world demands with unmatched performance and value.
Material Performances
GB/T 9867, ISO 4649 and ASTM D5963 Relative Volume Wears Comparison (mm³)
Partial data from THORDON product description
Under the same conditions, INDRON® elastoplastic alloy has less wear than other common nonmetal bearing materials, and some of its models are even better than imported materials,which means INDRON® bearing has longer service life, higher reliability and lower maintenance cost.
What bearing materials are more suitable as the materials used for water pump guide bearings, Babbitt alloy, rubber, ceramics or new polymer materials? It is advisable to take account of the lubrication requirements, use environment and maintenance cycle of the equipment.
Applications
INDRON® TSTN bearings are designed for a wide range of demanding applications, offering exceptional self-lubrication and wear resistance. Their versatility and reliability make them the preferred choice for:
Marine Applications
● Stern Bearings and Rudder Bearings: Proven to replace traditional metal bearings in oil-lubricated systems, delivering longer service life and reduced maintenance costs.
● Superior performance in water-lubricated systems compared to other non-metallic options, ensuring higher reliability and cost efficiency for shipowners.
● Superior performance in water-lubricated systems compared to other non-metallic options, ensuring higher reliability and cost efficiency for shipowners.
Water Pump Components
● Ideal for guide bearings, thrust bearings, and impeller rings in various pump types.
● Compatible with multiple configurations, including integrated designs, split bearings, bearing bushes, slat bearing bushes, centrifugal coating, and multi-layer PLYDX, ensuring a perfect fit for diverse operational requirements.
● Compatible with multiple configurations, including integrated designs, split bearings, bearing bushes, slat bearing bushes, centrifugal coating, and multi-layer PLYDX, ensuring a perfect fit for diverse operational requirements.
Products Show
Our Strengths
Our senior material scientists and mechanical engineering specialists have reached the international advanced level in material design, material innovations, material manufacturing and material applications. As a company focusing on the needs of customers and possessing years of experience and professional skills, we are assisting customers in solving their technical problems and providing extraordinary material technology solutions.
