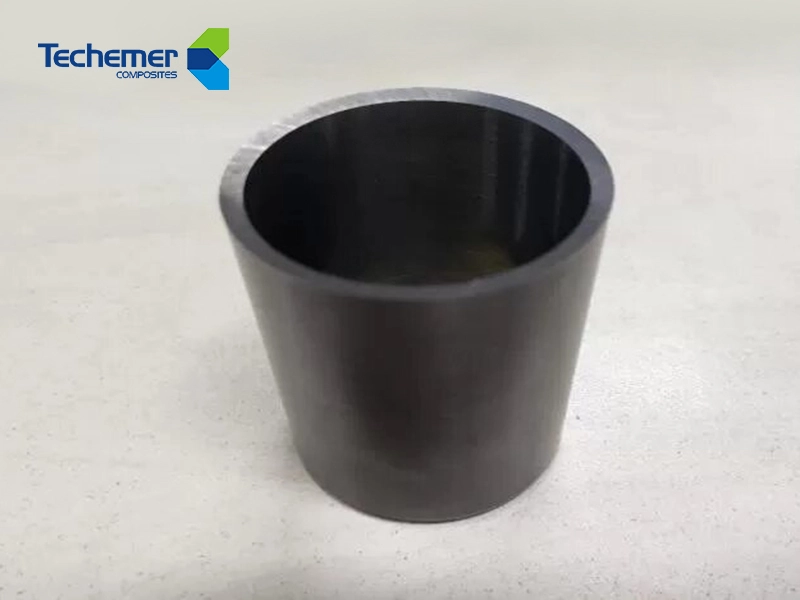

INDRON® Ceron ceramic bearings, developed by Techemer Corporation, are a cutting-edge solution for hydro-turbine applications.
MOQ: 1
Price: USD, CNY
Packaging Details: Wooden or heavy duty carton packaging
Delivery Time: 15working days
Payment Terms: T/T
Supply Ability: 10000
Place of Origin: China
Certification: GB/T19001-2016/ISO9001:2015, China Classification Society
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
INDRON® Ceron ceramic bearings, developed by Techemer Corporation, are a cutting-edge solution for hydro-turbine applications. These oil-free ceramic bearings provide exceptional wear resistance, corrosion resistance, and water lubrication capabilities, making them ideal for hydro-turbines, circulating water pumps, and other high-performance systems.
Key Advantages
INDRON® ceramic bearing technology leads the industry, with its wear resistance and corrosion resistance becoming increasingly popular in the mining and chemical industries.
High Hardness and Wear Resistance
Materials are harder than steel, providing better wear resistance and longer lifespan.
Low Density
Lighter than steel, reducing overall weight and lowering energy consumption.
High-Temperature Stability
Maintains structural integrity at high temperatures, suitable for high-temperature applications.
Corrosion Resistance
Resistant to corrosion, ideal for chemical, marine, and food processing industries.
Low Thermal Expansion
Better shape and clearance retention, suitable for precision applications.
Electrical Insulation
Non-conductive, suitable for electric motors and generators.
Low Friction
Reduces energy loss and heat generation, improving efficiency.
High-Speed Capability
Operates at higher speeds, ideal for high-speed machinery and precision instruments.
Minimal Lubrication Requirements
Can operate with minimal lubrication or in dry conditions, reducing maintenance needs.
These characteristics and advantages make ceramic bearings an ideal choice for mining equipment, automobiles, industrial machinery, medical equipment, aerospace and other fields requiring high performance and reliability.
Products Show
6 拷贝 (6)
Our Strengths
Our senior material scientists and mechanical engineering specialists have reached the international advanced level in material design, material innovations, material manufacturing and material applications. As a company focusing on the needs of customers and possessing years of experience and professional skills, we are assisting customers in solving their technical problems and providing extraordinary material technology solutions.
Common Guide Bearing Materials
|
Bearing type |
INDRON bearing |
AR bearing |
Ceramic bearing |
Rubber bearing |
Babbitt alloy bearing |
|
Characteristics |
The performance is close thordon, which can use more equipment assembly methods. In addition to traditional installations by freezing and pressurizing. It can also be installed by coating reactive thermal polymerization Dx and cold sticking. |
Good wear resistance and impact resistance. The bearing hardness is high; the shaft sleeve is easy to wear; the temperature difference changes greatly; there will be the risk of shelling; the price is high. |
Wear-resistant, heat-resistant, corrosion-resistant, lubricated by pump circulating water, capable of dry grinding for a short time, high requirement on accuracy in processing and assembly, fragile and the most expensive. |
It has a long history and mature manufacturing process, featured by wear resistance, anti-seismic, impact resistance, convenient assembly/disassembly and low price (only 20% of ceramic bearings price) |
Wear resistance and impact resistance require a set of more complicated sealing and lubricating devices and mechanisms. |
|
Lubricating requirements |
Clean water can be used for lubrication or 150s dry start according to the material grades. |
Dry start more than 180S without clean water lubrication. |
It can be lubricated by pumping medium without special clean water lubrication. |
Clean industrial water |
Grease lubrication requires a grease supply lubrication system. |
|
Working temperature |
≤70ºC |
≥273ºC |
The bearing itself can withstand the temperature of 1,400ºC |
≤50ºC |
≤65ºC |
|
Short time up to 80ºC |
|||||
|
Application site |
For pumping stations short of clean water or pumping stations requiring short-term dry friction, hRBR grade is suitable for water quality with moderate sediment content. |
Pumping stations without clean water or pumping stations requiring dry friction of more than 180S. |
Pumping stations without clean water or pumping stations requiring short-term dry friction. |
Extensive application in any pumping stations with clean water sources. |
The liquid of the pump itself cannot be used for bearing lubrication in the pumping station. |
|
Bearing type |
INDRON bearing |
AR bearing |
Ceramic bearing |
Rubber bearing |
Babbitt alloy bearing |
Material Performances
GB/T 9867, ISO 4649 and ASTM D5963 Relative Volume Wears Comparison (mm³)
Partial data from THORDON product description
Under the same conditions, INDRON® elastoplastic alloy has less wear than other common nonmetal bearing materials, and some of its models are even better than imported materials,which means INDRON® bearing has longer service life, higher reliability and lower maintenance cost.
Applications
Indron® Ceramic Bearings for Hydro-Turbines are the future of high-performance, oil-free ceramic bearings, providing an unparalleled combination of durability, efficiency, and reliability. Contact us today to learn more!
Hydro-Turbines & Marine Power Generation
Bulldozers, excavators, forging presses, rolling mills.
Industrial Machinery & Pumps
Turbine blade seals, ship hydraulic systems.
Aerospace & High-Speed Equipment
Injection molding machines, cranes, tunneling machines.
Mining & Chemical Processing
Medical Equipment & Precision Instruments
