High Quality Water Lubricated Thrust Bearing From Techemer
The water lubricated thrust bearing is a product developed by Techemer Composites (Guangdong) Co., Ltd. to be a good addition to the product category. Its design is completed by a group of people with different skills and training, depending upon the nature and type of product involved. The production is strictly controlled at every step. All this contributes to the excellent product property and the appropriate applications.
Techemer products are loved and sought after by many Chinese and Western providers. With great industrial chain competitiveness and brand influence, they enable companies like yours to increase revenue, realize cost reductions, and focus on core objectives. These products receive numerous praise which underlines our commitment to provide total customer satisfaction and to over-achieve goals as your trusted partner and supplier.

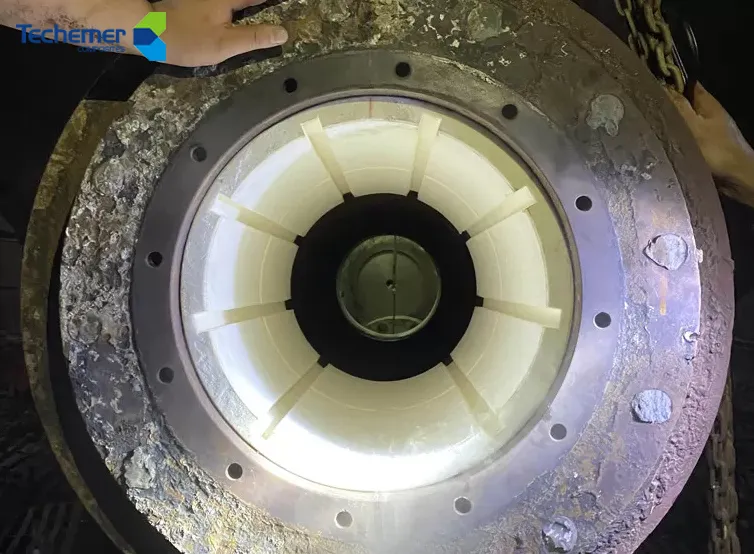

Water lubricated thrust bearings support axial loads in rotating machinery by utilizing water as a primary lubricant, creating a hydrodynamic film that minimizes contact and reduces wear. Designed for efficiency, these bearings excel in environments where traditional greases or oils are impractical or environmentally unfriendly. They manage high thrust forces in applications such as turbines, pumps, and marine propulsion systems.
How to choose water lubricated thrust bearing?
- Water lubrication eliminates oil usage, minimizing environmental pollution risks.
- Suitable for marine, offshore, or eco-sensitive environments where oil-based systems could be hazardous.
- Meets strict environmental regulations and sustainability goals in industrial operations.
- Self-lubricating with water reduces manual maintenance tasks like oil changes or seal replacements.
- Ideal for applications with limited accessibility or where downtime is costly, such as underwater installations.
- Features fewer wearable parts, extending service intervals and lowering long-term upkeep costs.
- Constructed with corrosion-resistant materials like stainless steel or advanced composites for extended lifespan.
- Maintains structural integrity under heavy loads and harsh conditions, such as high humidity or saltwater exposure.
- Resists wear and tear from continuous operation, reducing replacement frequency in demanding environments.
no data
#unit-iSc4Bn4ra72B4xD .ce-image_inner{justify-content:center;}#unit-iSc4Bn4ra72B4xD .ce-image_item{--svg-color:rgba(131, 195, 38,1);}#unit-iSc4Bn4ra72B4xD .ce-image{height:100%;width:100%;--image-effect:2;}
#unit-1PRebL4rT1q8wB6{padding-top:1vw;}
A rudder bearing is one of the most vital yet often overlooked components in a ship's steering system. It provides structural support to the rudder stock, enabling it to rotate smoothly and efficiently, ensuring safe and precise navigation. From large cargo vessels to luxury yachts, rudder bearings are essential for maintaining directional control, stability, and overall marine performance. As the maritime industry increasingly adopts advanced materials and technologies, understanding the design, function, and maintenance of rudder bearings is more important than ever.
Ever wondered how massive ships steer smoothly through turbulent seas? The answer lies in a hidden but powerful component—the rudder bearing.
What is a Rudder Bearing?
A rudder bearing is a high-precision mechanical component mounted along the rudder stock axis, designed to support the rudder and enable low-friction, stable rotation during steering operations.
In ship structures, rudder bearings are located at the interface between the rudder stock and the hull, typically comprising both upper and lower bearings. These work together to absorb axial loads (such as vertical weight and wave impact) and radial loads (from water pressure and steering force). High-performance rudder bearing materials must resist corrosion, be self-lubricating, and offer high wear resistance to ensure long-term operation in harsh marine environments.
Rudder bearings affect rudder responsiveness and determine the overall efficiency and safety of the steering system. Thus, they are not just structural components but also critical dynamic parts, playing an irreplaceable role in modern vessel design.
What Is the Purpose of a Rudder Bearing?
The rudder bearing is designed to support the rudder stock (shaft) and allow it to rotate with minimal friction. Its main purposes include:
Support: The bearing physically supports the rudder shaft, ensuring it remains centered and stable.Smooth Rotation: It enables fluid movement of the rudder, essential for precise steering.Load Absorption: It absorbs both radial and axial loads from water pressure and rudder weight.Friction Reduction: By reducing friction, it prevents excessive wear on the rudder stock and related components.Without a properly functioning rudder bearing, steering a ship becomes difficult, unpredictable, and potentially dangerous. Excessive play or resistance in the rudder could lead to course deviation, maneuvering delays, and even mechanical failure in extreme cases.
How Does a Rudder Bearing Work?
Rudder bearings are strategically placed where the rudder stock penetrates the hull or connects to the steering system. Typically, a ship will have both an upper and a lower rudder bearing:
Upper Rudder Bearing: Supports vertical loads and maintains the position of the rudder stock at the top.Lower Rudder Bearing: Located at the bottom of the shaft, it absorbs lateral loads caused by water resistance.These bearings ensure that the rudder remains aligned and that movement is smooth and controlled. Depending on the vessel and bearing type, lubrication may be provided through oil, grease, or self-lubricating materials. Seals are often installed to prevent seawater ingress and retain lubrication within the housing.
In modern vessels, rudder bearings are often designed to accommodate a small degree of misalignment and vibration without affecting performance, thanks to the use of advanced materials and precision engineering.
Types of Rudder Bearings
There are several types of rudder bearings, each designed for specific applications:
Upper Rudder Bearing: Installed above the waterline, it helps manage vertical loads and keep the rudder shaft aligned with the steering gear.Lower Rudder Bearing: Positioned below the waterline where the rudder shaft exits the hull. It handles the side loads generated during maneuvering.Pintle Bearing: Located at the pivot point (pintle) of the rudder, it allows for controlled rotation and helps maintain rudder stability.Carrier Bearing: Usually used in larger vessels to support the weight of the rudder vertically and to absorb shock from wave impacts.Each type plays a vital role, and some vessels may use combinations depending on size, steering system, and intended maritime operation.
#unit-Iuoe9tcJa3oC6dh .ce-image_inner{justify-content:center;}#unit-Iuoe9tcJa3oC6dh .ce-image_item{--svg-color:rgba(131, 195, 38,1);}#unit-Iuoe9tcJa3oC6dh .ce-image{height:100%;width:100%;--image-effect:2;}#unit-Iuoe9tcJa3oC6dh{padding-top:1vw;padding-bottom:1vw;}
Materials Used in Rudder Bearings
Material choice significantly impacts the performance, durability, and maintenance needs of rudder bearings. Common materials include:
Bronze: Known for its excellent corrosion resistance and strength, especially in saltwater environments.Composite Materials (e.g., INDRON®): Offer superior self-lubricating properties, longer service life, and reduced maintenance.Rubber-lined Bearings: Ideal for absorbing shocks and reducing vibrations. Commonly used in smaller boats or auxiliary bearings.White Metal (Babbitt): Occasionally used in older or traditional ships due to its low-friction properties.Modern shipowners often prefer composite bearings due to their environmental advantages (no need for grease/oil) and lower lifecycle costs. Materials like INDRON® are specifically engineered to endure harsh marine conditions while providing excellent dimensional stability and wear resistance.
Installation and Alignment Considerations
Proper installation of rudder bearings is crucial to ensure optimal performance:
Precision Alignment: Misaligned bearings can cause uneven wear, increased friction, and premature failure.Axial and Radial Tolerance Checks: Ensure the bearing can handle the expected load without excessive movement.Seal Integrity: Protects against water ingress and lubricant leakage.Cooling and Lubrication Systems: Especially for metal bearings, maintaining adequate lubrication and cooling is key.For new builds, computer-aided alignment tools are often used. During retrofits, dry-docking is necessary for accurate bearing inspection and replacement.
Maintenance, Wear, and Replacement
Even the highest quality rudder bearing requires regular inspection and maintenance:
Routine Checks: Annual or biannual inspections for signs of wear, corrosion, or misalignment.Wear Indicators: Increased steering effort, vibrations, or noise during operation.Replacement Intervals: Generally every 3 to 7 years, depending on material type and operating conditions.Common Issues: Dry running, water contamination, seal failure, and excessive play.Composite bearings typically offer longer intervals between maintenance and are easier to inspect. Some high-end systems even include remote monitoring sensors to track bearing condition in real time.
Related Terms and Components
Understanding rudder bearings also involves familiarity with surrounding parts:
Rudder Stock: The shaft connecting the rudder blade to the steering gear.Steering Gear: The system (hydraulic or electric) that moves the rudder via the stock.Rudder Carrier: A structural component supporting the rudder's vertical load.Stuffing Box or Gland Packing: Prevents water ingress where the shaft passes through the hull.These components work together to provide reliable, responsive steering under all maritime conditions.
Conclusion
Rudder bearings are small in size but massive in importance. They form the backbone of a ship's steering mechanism, ensuring stability, accuracy, and safety at sea. By understanding their purpose, types, materials, and maintenance needs, marine professionals can make informed choices that extend service life, reduce downtime, and enhance navigational control. Whether you're a shipowner, naval engineer, or maritime enthusiast, a solid grasp of rudder bearing technology helps you appreciate the critical systems that keep our oceans navigable and our ships on course.
#unit-n3WnBx9i4AzbLQ2{padding-top:1vw;}
FAQ
#unit-7VOjA5UAXFYopDK{text-align:left;padding-top:1vw;}#unit-7VOjA5UAXFYopDK [ce-data-type="title"]{text-align:left;}#unit-7VOjA5UAXFYopDK [ce-data-type="summary"]{text-align:left;}#unit-7VOjA5UAXFYopDK .ce-faq_index{text-align:left;}#unit-7VOjA5UAXFYopDK .ce-faq_icon{text-align:right;}#unit-7VOjA5UAXFYopDK [ce-data-type="item"]{text-align:left;}
1
What is the main function of a rudder bearing?
To support and stabilize the rudder shaft while allowing smooth, controlled rotation.
2
How can I tell if my rudder bearing needs replacement?
Signs include increased rudder play, steering stiffness, strange noises, or visible wear during dry-docking.
3
Are rudder bearings lubricated?
Some are lubricated with oil or grease; modern composite bearings may be self-lubricating.
4
What's the difference between a rudder bearing and a cutlass bearing?
A rudder bearing supports the rudder stock; a cutlass bearing supports the propeller shaft.
5
Can I install or replace a rudder bearing myself?
It is advisable to work with marine professionals due to the precision and alignment required.
#unit-1PRebL4rT1q8wB6{padding-top:1vw;}
A rudder bearing is one of the most vital yet often overlooked components in a ship's steering system. It provides structural support to the rudder stock, enabling it to rotate smoothly and efficiently, ensuring safe and precise navigation. From large cargo vessels to luxury yachts, rudder bearings are essential for maintaining directional control, stability, and overall marine performance. As the maritime industry increasingly adopts advanced materials and technologies, understanding the design, function, and maintenance of rudder bearings is more important than ever.
Ever wondered how massive ships steer smoothly through turbulent seas? The answer lies in a hidden but powerful component—the rudder bearing.
What is a Rudder Bearing?
A rudder bearing is a high-precision mechanical component mounted along the rudder stock axis, designed to support the rudder and enable low-friction, stable rotation during steering operations.
In ship structures, rudder bearings are located at the interface between the rudder stock and the hull, typically comprising both upper and lower bearings. These work together to absorb axial loads (such as vertical weight and wave impact) and radial loads (from water pressure and steering force). High-performance rudder bearing materials must resist corrosion, be self-lubricating, and offer high wear resistance to ensure long-term operation in harsh marine environments.
Rudder bearings affect rudder responsiveness and determine the overall efficiency and safety of the steering system. Thus, they are not just structural components but also critical dynamic parts, playing an irreplaceable role in modern vessel design.
What Is the Purpose of a Rudder Bearing?
The rudder bearing is designed to support the rudder stock (shaft) and allow it to rotate with minimal friction. Its main purposes include:
Support: The bearing physically supports the rudder shaft, ensuring it remains centered and stable.Smooth Rotation: It enables fluid movement of the rudder, essential for precise steering.Load Absorption: It absorbs both radial and axial loads from water pressure and rudder weight.Friction Reduction: By reducing friction, it prevents excessive wear on the rudder stock and related components.Without a properly functioning rudder bearing, steering a ship becomes difficult, unpredictable, and potentially dangerous. Excessive play or resistance in the rudder could lead to course deviation, maneuvering delays, and even mechanical failure in extreme cases.
How Does a Rudder Bearing Work?
Rudder bearings are strategically placed where the rudder stock penetrates the hull or connects to the steering system. Typically, a ship will have both an upper and a lower rudder bearing:
Upper Rudder Bearing: Supports vertical loads and maintains the position of the rudder stock at the top.Lower Rudder Bearing: Located at the bottom of the shaft, it absorbs lateral loads caused by water resistance.These bearings ensure that the rudder remains aligned and that movement is smooth and controlled. Depending on the vessel and bearing type, lubrication may be provided through oil, grease, or self-lubricating materials. Seals are often installed to prevent seawater ingress and retain lubrication within the housing.
In modern vessels, rudder bearings are often designed to accommodate a small degree of misalignment and vibration without affecting performance, thanks to the use of advanced materials and precision engineering.
Types of Rudder Bearings
There are several types of rudder bearings, each designed for specific applications:
Upper Rudder Bearing: Installed above the waterline, it helps manage vertical loads and keep the rudder shaft aligned with the steering gear.Lower Rudder Bearing: Positioned below the waterline where the rudder shaft exits the hull. It handles the side loads generated during maneuvering.Pintle Bearing: Located at the pivot point (pintle) of the rudder, it allows for controlled rotation and helps maintain rudder stability.Carrier Bearing: Usually used in larger vessels to support the weight of the rudder vertically and to absorb shock from wave impacts.Each type plays a vital role, and some vessels may use combinations depending on size, steering system, and intended maritime operation.
#unit-Iuoe9tcJa3oC6dh .ce-image_inner{justify-content:center;}#unit-Iuoe9tcJa3oC6dh .ce-image_item{--svg-color:rgba(131, 195, 38,1);}#unit-Iuoe9tcJa3oC6dh .ce-image{height:100%;width:100%;--image-effect:2;}#unit-Iuoe9tcJa3oC6dh{padding-top:1vw;padding-bottom:1vw;}
Materials Used in Rudder Bearings
Material choice significantly impacts the performance, durability, and maintenance needs of rudder bearings. Common materials include:
Bronze: Known for its excellent corrosion resistance and strength, especially in saltwater environments.Composite Materials (e.g., INDRON®): Offer superior self-lubricating properties, longer service life, and reduced maintenance.Rubber-lined Bearings: Ideal for absorbing shocks and reducing vibrations. Commonly used in smaller boats or auxiliary bearings.White Metal (Babbitt): Occasionally used in older or traditional ships due to its low-friction properties.Modern shipowners often prefer composite bearings due to their environmental advantages (no need for grease/oil) and lower lifecycle costs. Materials like INDRON® are specifically engineered to endure harsh marine conditions while providing excellent dimensional stability and wear resistance.
Installation and Alignment Considerations
Proper installation of rudder bearings is crucial to ensure optimal performance:
Precision Alignment: Misaligned bearings can cause uneven wear, increased friction, and premature failure.Axial and Radial Tolerance Checks: Ensure the bearing can handle the expected load without excessive movement.Seal Integrity: Protects against water ingress and lubricant leakage.Cooling and Lubrication Systems: Especially for metal bearings, maintaining adequate lubrication and cooling is key.For new builds, computer-aided alignment tools are often used. During retrofits, dry-docking is necessary for accurate bearing inspection and replacement.
Maintenance, Wear, and Replacement
Even the highest quality rudder bearing requires regular inspection and maintenance:
Routine Checks: Annual or biannual inspections for signs of wear, corrosion, or misalignment.Wear Indicators: Increased steering effort, vibrations, or noise during operation.Replacement Intervals: Generally every 3 to 7 years, depending on material type and operating conditions.Common Issues: Dry running, water contamination, seal failure, and excessive play.Composite bearings typically offer longer intervals between maintenance and are easier to inspect. Some high-end systems even include remote monitoring sensors to track bearing condition in real time.
Related Terms and Components
Understanding rudder bearings also involves familiarity with surrounding parts:
Rudder Stock: The shaft connecting the rudder blade to the steering gear.Steering Gear: The system (hydraulic or electric) that moves the rudder via the stock.Rudder Carrier: A structural component supporting the rudder's vertical load.Stuffing Box or Gland Packing: Prevents water ingress where the shaft passes through the hull.These components work together to provide reliable, responsive steering under all maritime conditions.
Conclusion
Rudder bearings are small in size but massive in importance. They form the backbone of a ship's steering mechanism, ensuring stability, accuracy, and safety at sea. By understanding their purpose, types, materials, and maintenance needs, marine professionals can make informed choices that extend service life, reduce downtime, and enhance navigational control. Whether you're a shipowner, naval engineer, or maritime enthusiast, a solid grasp of rudder bearing technology helps you appreciate the critical systems that keep our oceans navigable and our ships on course.
#unit-n3WnBx9i4AzbLQ2{padding-top:1vw;}
FAQ
#unit-7VOjA5UAXFYopDK{text-align:left;padding-top:1vw;}#unit-7VOjA5UAXFYopDK [ce-data-type="title"]{text-align:left;}#unit-7VOjA5UAXFYopDK [ce-data-type="summary"]{text-align:left;}#unit-7VOjA5UAXFYopDK .ce-faq_index{text-align:left;}#unit-7VOjA5UAXFYopDK .ce-faq_icon{text-align:right;}#unit-7VOjA5UAXFYopDK [ce-data-type="item"]{text-align:left;}
1
What is the main function of a rudder bearing?
To support and stabilize the rudder shaft while allowing smooth, controlled rotation.
2
How can I tell if my rudder bearing needs replacement?
Signs include increased rudder play, steering stiffness, strange noises, or visible wear during dry-docking.
3
Are rudder bearings lubricated?
Some are lubricated with oil or grease; modern composite bearings may be self-lubricating.
4
What's the difference between a rudder bearing and a cutlass bearing?
A rudder bearing supports the rudder stock; a cutlass bearing supports the propeller shaft.
5
Can I install or replace a rudder bearing myself?
It is advisable to work with marine professionals due to the precision and alignment required.
#unit-iSc4Bn4ra72B4xD .ce-image_inner{justify-content:center;}#unit-iSc4Bn4ra72B4xD .ce-image_item{--svg-color:rgba(131, 195, 38,1);}#unit-iSc4Bn4ra72B4xD .ce-image{height:100%;width:100%;--image-effect:2;}
#unit-1PRebL4rT1q8wB6{padding-top:1vw;}
Have you ever wondered what allows massive ships to sail smoothly across the oceans? The secret lies in a crucial component called the stern tube bearing.
Stern tube bearings are the unsung heroes of marine engineering, ensuring the seamless operation of ships by reducing friction and wear in the propulsion system. Whether you're a shipowner, marine engineer, or simply curious about maritime technology, understanding stern tube bearings is essential for grasping the complexities of modern shipbuilding and maintenance.
What is a Stern Tube Bearing?
Definition and Basic Function
A stern tube bearing is a critical component in the propulsion system of a ship.
It is located within the stern tube, which houses the propeller shaft. Its primary function is to support the propeller shaft, allowing it to rotate smoothly while minimizing friction and wear.
Types of Stern Tube Bearings
White Metal Bearings: Known for their durability and ability to withstand high loads.
Composite Bearings: Lightweight and resistant to corrosion, ideal for modern vessels.
Polymer Bearings: Offer excellent wear resistance and are often used in water-lubricated systems
Materials Used in Manufacturing
Common materials include bronze, white metal, composites, and polymers.
The choice of material depends on factors like load capacity, operating conditions, and lubrication methods.
Importance of Stern Tube Bearings
Role in Reducing Friction and Wear
Stern tube bearings act as a buffer between the rotating propeller shaft and the stationary stern tube.
They significantly reduce friction, preventing excessive wear and tear.
Contribution to the Overall Efficiency of the Propulsion System
By minimizing energy loss due to friction, stern tube bearings enhance the efficiency of the ship's propulsion system.
This leads to better fuel economy and reduced operational costs.
Impact on the Longevity of the Ship's Stern Tube and Propeller Shaft
Properly functioning bearings extend the lifespan of the stern tube and propeller shaft.
They prevent costly repairs and downtime, ensuring smoother and safer voyages.
#unit-Iuoe9tcJa3oC6dh .ce-image_inner{justify-content:center;}#unit-Iuoe9tcJa3oC6dh .ce-image_item{--svg-color:rgba(131, 195, 38,1);}#unit-Iuoe9tcJa3oC6dh .ce-image{height:100%;width:100%;--image-effect:2;}#unit-Iuoe9tcJa3oC6dh{padding-top:1vw;padding-bottom:1vw;}
How Stern Tube Bearings Work
Interaction with the Propeller Shaft
The bearing provides a smooth surface for the propeller shaft to rotate against.
It absorbs radial and axial loads, ensuring stable and efficient operation.
Lubrication Methods
Oil Lubrication: Commonly used in traditional systems, offering excellent load-bearing capacity.Water Lubrication: Environmentally friendly and increasingly popular in modern vessels.
Maintenance and Monitoring Techniques
Regular inspections to check for wear, misalignment, or lubrication issues.
Advanced technologies like condition monitoring systems to detect potential problems early.
Common Issues and Solutions
Typical Problems
Wear and Tear: Over time, bearings can wear out due to constant friction.Misalignment: Improper installation or shaft misalignment can lead to uneven wear.Lubrication Failures: Insufficient or contaminated lubrication can cause overheating and damage.
Preventive Measures
Conduct regular inspections and maintenance.
Ensure proper alignment during installation.
Use high-quality lubricants and monitor lubrication systems.
Advanced Technologies and Innovations
Self-lubricating Bearings: Reduce the need for external lubrication.Smart Bearings: Equipped with sensors to monitor performance in real-time.
Choosing the Right Stern Tube Bearing
Factors to Consider
Ship Type: Different vessels (e.g., cargo ships, tankers, cruise ships) have varying requirements.Operating Conditions: Consider factors like load, speed, and environmental conditions.Material and Design: Choose materials and designs that suit your specific needs.Comparison of Different Types and MaterialsWhite Metal vs. Composite Bearings: White metal offers higher load capacity, while composites are lighter and corrosion-resistant.Oil vs. Water Lubrication: Oil lubrication is more traditional, while water lubrication is eco-friendly.
Expert Recommendations and Industry Standards
Consult with marine engineers and bearing manufacturers.
Adhere to industry standards like ISO and ABS guidelines.
Conclusion
Stern tube bearings are essential components that ensure the smooth operation of marine vessels. They reduce friction, enhance efficiency, and extend the lifespan of the propulsion system. If you're looking to purchase or learn more about stern tube bearings, consult with experts and explore high-quality options from reputable manufacturers. Investing in the right stern tube bearing not only enhances your ship's performance but also ensures safer and more efficient voyages.
Visit our website at www.water-lubricatedbearings.com to learn more about our innovative solutions and how we can help you optimize your vessel's performance.
#unit-1PRebL4rT1q8wB6{padding-top:1vw;}
Have you ever wondered what allows massive ships to sail smoothly across the oceans? The secret lies in a crucial component called the stern tube bearing.
Stern tube bearings are the unsung heroes of marine engineering, ensuring the seamless operation of ships by reducing friction and wear in the propulsion system. Whether you're a shipowner, marine engineer, or simply curious about maritime technology, understanding stern tube bearings is essential for grasping the complexities of modern shipbuilding and maintenance.
What is a Stern Tube Bearing?
Definition and Basic Function
A stern tube bearing is a critical component in the propulsion system of a ship.
It is located within the stern tube, which houses the propeller shaft. Its primary function is to support the propeller shaft, allowing it to rotate smoothly while minimizing friction and wear.
Types of Stern Tube Bearings
White Metal Bearings: Known for their durability and ability to withstand high loads.
Composite Bearings: Lightweight and resistant to corrosion, ideal for modern vessels.
Polymer Bearings: Offer excellent wear resistance and are often used in water-lubricated systems
Materials Used in Manufacturing
Common materials include bronze, white metal, composites, and polymers.
The choice of material depends on factors like load capacity, operating conditions, and lubrication methods.
Importance of Stern Tube Bearings
Role in Reducing Friction and Wear
Stern tube bearings act as a buffer between the rotating propeller shaft and the stationary stern tube.
They significantly reduce friction, preventing excessive wear and tear.
Contribution to the Overall Efficiency of the Propulsion System
By minimizing energy loss due to friction, stern tube bearings enhance the efficiency of the ship's propulsion system.
This leads to better fuel economy and reduced operational costs.
Impact on the Longevity of the Ship's Stern Tube and Propeller Shaft
Properly functioning bearings extend the lifespan of the stern tube and propeller shaft.
They prevent costly repairs and downtime, ensuring smoother and safer voyages.
#unit-Iuoe9tcJa3oC6dh .ce-image_inner{justify-content:center;}#unit-Iuoe9tcJa3oC6dh .ce-image_item{--svg-color:rgba(131, 195, 38,1);}#unit-Iuoe9tcJa3oC6dh .ce-image{height:100%;width:100%;--image-effect:2;}#unit-Iuoe9tcJa3oC6dh{padding-top:1vw;padding-bottom:1vw;}
How Stern Tube Bearings Work
Interaction with the Propeller Shaft
The bearing provides a smooth surface for the propeller shaft to rotate against.
It absorbs radial and axial loads, ensuring stable and efficient operation.
Lubrication Methods
Oil Lubrication: Commonly used in traditional systems, offering excellent load-bearing capacity.Water Lubrication: Environmentally friendly and increasingly popular in modern vessels.
Maintenance and Monitoring Techniques
Regular inspections to check for wear, misalignment, or lubrication issues.
Advanced technologies like condition monitoring systems to detect potential problems early.
Common Issues and Solutions
Typical Problems
Wear and Tear: Over time, bearings can wear out due to constant friction.Misalignment: Improper installation or shaft misalignment can lead to uneven wear.Lubrication Failures: Insufficient or contaminated lubrication can cause overheating and damage.
Preventive Measures
Conduct regular inspections and maintenance.
Ensure proper alignment during installation.
Use high-quality lubricants and monitor lubrication systems.
Advanced Technologies and Innovations
Self-lubricating Bearings: Reduce the need for external lubrication.Smart Bearings: Equipped with sensors to monitor performance in real-time.
Choosing the Right Stern Tube Bearing
Factors to Consider
Ship Type: Different vessels (e.g., cargo ships, tankers, cruise ships) have varying requirements.Operating Conditions: Consider factors like load, speed, and environmental conditions.Material and Design: Choose materials and designs that suit your specific needs.Comparison of Different Types and MaterialsWhite Metal vs. Composite Bearings: White metal offers higher load capacity, while composites are lighter and corrosion-resistant.Oil vs. Water Lubrication: Oil lubrication is more traditional, while water lubrication is eco-friendly.
Expert Recommendations and Industry Standards
Consult with marine engineers and bearing manufacturers.
Adhere to industry standards like ISO and ABS guidelines.
Conclusion
Stern tube bearings are essential components that ensure the smooth operation of marine vessels. They reduce friction, enhance efficiency, and extend the lifespan of the propulsion system. If you're looking to purchase or learn more about stern tube bearings, consult with experts and explore high-quality options from reputable manufacturers. Investing in the right stern tube bearing not only enhances your ship's performance but also ensures safer and more efficient voyages.
Visit our website at www.water-lubricatedbearings.com to learn more about our innovative solutions and how we can help you optimize your vessel's performance.
#unit-iSc4Bn4ra72B4xD .ce-image_inner{justify-content:center;}#unit-iSc4Bn4ra72B4xD .ce-image_item{--svg-color:rgba(131, 195, 38,1);}#unit-iSc4Bn4ra72B4xD .ce-image{height:100%;width:100%;--image-effect:2;}
#unit-1PRebL4rT1q8wB6{padding-top:1vw;}
What Are the Different Types of Stern Tube Bearings?
Stern tubes are classified into two main types based on lubrication: water-lubricated and oil-lubricated.
Water-Lubricated Bearings: These rely on seawater to reduce friction, making them environmentally friendly and cost-effective for long-term use.Oil-Lubricated Bearings: Commonly used in vessels where higher loads demand more robust lubrication. They provide excellent performance but require frequent maintenance to avoid oil leakage.
How Do Water-Lubricated Stern Tube Bearings Work?
Water-lubricated bearings operate by using seawater as a natural lubricant. This eliminates the need for synthetic oils, reducing the risk of environmental contamination. The water flows through the bearing surface, creating a thin film that minimizes friction and wear.
This system is particularly advantageous for vessels operating in environmentally sensitive regions.
#unit-Iuoe9tcJa3oC6dh .ce-image_inner{justify-content:center;}#unit-Iuoe9tcJa3oC6dh .ce-image_item{--svg-color:rgba(131, 195, 38,1);}#unit-Iuoe9tcJa3oC6dh .ce-image{height:100%;width:100%;--image-effect:2;}#unit-Iuoe9tcJa3oC6dh{padding-top:1vw;padding-bottom:1vw;}
What Are the Advantages of Water-Lubricated Over Oil-Lubricated Bearings?
Water-lubricated bearings offer several benefits:
Eco-Friendly: No oil leakage, preserving marine ecosystems.Lower Operating Costs: Eliminates the need for oil and its associated maintenance.Durability: Designed to resist corrosion and withstand the rigors of seawater.In contrast, oil-lubricated bearings may require more regular upkeep and pose environmental risks if not properly maintained.
What Factors Should Be Considered When Choosing a Stern Tube Bearing?
Selecting the right stern tube bearing depends on several factors:
Material: The choice of material significantly impacts the bearing's durability and performance. INDRON®'s elastic-plastic polymer alloy composite stands out for its excellent resistance to wear and corrosion, making it ideal for water-lubricated applications. This advanced composite material not only extends the bearing's lifespan but also ensures reliable performance even in the harshest marine environments.Lubrication Method: Choose between water and oil lubrication based on vessel type and operational needs. Water-lubricated bearings are typically more eco-friendly and cost-effective for long-term use.Durability: For vessels operating in demanding conditions, high-wear resistance and corrosion-resistant materials are essential to reduce maintenance and downtime.
#unit-kZ94sQ4dnEwNLO7 .ce-image_inner{justify-content:center;}#unit-kZ94sQ4dnEwNLO7 .ce-image_item{--svg-color:rgba(131, 195, 38,1);}#unit-kZ94sQ4dnEwNLO7 .ce-image{height:100%;width:100%;--image-effect:2;}#unit-kZ94sQ4dnEwNLO7{padding-top:1vw;padding-bottom:1vw;}
How to Maintain Stern Tube Bearings for Optimal Performance?
Proper maintenance ensures your stern tube bearings last longer and perform at their best:
Regular Inspections: Check for wear, tear, and alignment issues.Lubrication Management: Ensure proper flow of water or oil, depending on the type.Timely Replacement: Replace worn bearings to avoid damage to the stern tube system.
Conclusion
Choosing the right stern tube bearing can significantly impact your vessel's efficiency and operational costs. Water-lubricated bearings, such as those offered by INDRON®, are eco-friendly and cost-effective solutions for modern marine needs. Explore INDRON® solutions to find the perfect fit for your vessel today!
#unit-1PRebL4rT1q8wB6{padding-top:1vw;}
What Are the Different Types of Stern Tube Bearings?
Stern tubes are classified into two main types based on lubrication: water-lubricated and oil-lubricated.
Water-Lubricated Bearings: These rely on seawater to reduce friction, making them environmentally friendly and cost-effective for long-term use.Oil-Lubricated Bearings: Commonly used in vessels where higher loads demand more robust lubrication. They provide excellent performance but require frequent maintenance to avoid oil leakage.
How Do Water-Lubricated Stern Tube Bearings Work?
Water-lubricated bearings operate by using seawater as a natural lubricant. This eliminates the need for synthetic oils, reducing the risk of environmental contamination. The water flows through the bearing surface, creating a thin film that minimizes friction and wear.
This system is particularly advantageous for vessels operating in environmentally sensitive regions.
#unit-Iuoe9tcJa3oC6dh .ce-image_inner{justify-content:center;}#unit-Iuoe9tcJa3oC6dh .ce-image_item{--svg-color:rgba(131, 195, 38,1);}#unit-Iuoe9tcJa3oC6dh .ce-image{height:100%;width:100%;--image-effect:2;}#unit-Iuoe9tcJa3oC6dh{padding-top:1vw;padding-bottom:1vw;}
What Are the Advantages of Water-Lubricated Over Oil-Lubricated Bearings?
Water-lubricated bearings offer several benefits:
Eco-Friendly: No oil leakage, preserving marine ecosystems.Lower Operating Costs: Eliminates the need for oil and its associated maintenance.Durability: Designed to resist corrosion and withstand the rigors of seawater.In contrast, oil-lubricated bearings may require more regular upkeep and pose environmental risks if not properly maintained.
What Factors Should Be Considered When Choosing a Stern Tube Bearing?
Selecting the right stern tube bearing depends on several factors:
Material: The choice of material significantly impacts the bearing's durability and performance. INDRON®'s elastic-plastic polymer alloy composite stands out for its excellent resistance to wear and corrosion, making it ideal for water-lubricated applications. This advanced composite material not only extends the bearing's lifespan but also ensures reliable performance even in the harshest marine environments.Lubrication Method: Choose between water and oil lubrication based on vessel type and operational needs. Water-lubricated bearings are typically more eco-friendly and cost-effective for long-term use.Durability: For vessels operating in demanding conditions, high-wear resistance and corrosion-resistant materials are essential to reduce maintenance and downtime.
#unit-kZ94sQ4dnEwNLO7 .ce-image_inner{justify-content:center;}#unit-kZ94sQ4dnEwNLO7 .ce-image_item{--svg-color:rgba(131, 195, 38,1);}#unit-kZ94sQ4dnEwNLO7 .ce-image{height:100%;width:100%;--image-effect:2;}#unit-kZ94sQ4dnEwNLO7{padding-top:1vw;padding-bottom:1vw;}
How to Maintain Stern Tube Bearings for Optimal Performance?
Proper maintenance ensures your stern tube bearings last longer and perform at their best:
Regular Inspections: Check for wear, tear, and alignment issues.Lubrication Management: Ensure proper flow of water or oil, depending on the type.Timely Replacement: Replace worn bearings to avoid damage to the stern tube system.
Conclusion
Choosing the right stern tube bearing can significantly impact your vessel's efficiency and operational costs. Water-lubricated bearings, such as those offered by INDRON®, are eco-friendly and cost-effective solutions for modern marine needs. Explore INDRON® solutions to find the perfect fit for your vessel today!
INDRON water-lubricated bearings have been successfully applied at the Fusha Water Conservancy Hub in Zhongshan, China. Their eco-friendly, oil-free design provides stable and efficient operation for key equipment, while offering long-lasting, low-maintenance solutions for the project.
#unit-5M761jiFlHHSSAA{padding-top:1vw;}#unit-5M761jiFlHHSSAA [ce-data-type="inner"]{flex-direction:column;}#unit-5M761jiFlHHSSAA .ce-video_inner{display:block;}#unit-5M761jiFlHHSSAA .ce-video_poster{display:block;position:relative;z-index:1;}#unit-5M761jiFlHHSSAA .ce-list_items{margin:-0.8vw;}#unit-5M761jiFlHHSSAA [ce-data-type="title"]{display:none;}#unit-5M761jiFlHHSSAA .ce-image_item{--image-scale:1;--svg-color:rgba(131, 195, 38,1);padding-top:100%;}#unit-5M761jiFlHHSSAA .ce-image{height:100%;width:100%;--image-effect:3;object-fit:cover;}@media(max-width:1199px){#unit-5M761jiFlHHSSAA .ce-list_items{margin:-1.5vw;}}@media(max-width:767px){#unit-5M761jiFlHHSSAA{padding-top:3vw;}}
5 (19)
4-1
3 (21)
2 (16)
When a vertical shaft passes through a bearing and is lubricated, the mechanical interaction may appear straightforward. In reality, this structure represents one of the most demanding configurations in marine propulsion units, hydro stations, vertical pumps, offshore energy systems, and industrial machinery. The vertical orientation introduces additional axial weight, lubrication flow instability, and a greater tendency for misalignment—making the choice of bearing materials, lubrication method, and system design critical for long-term reliability.
This article combines engineering fundamentals with modern industry insights to explain how vertical-shaft bearings function, what challenges they face, and why water-lubricated polymer bearings are becoming the preferred solution in many applications.
Understanding What Happens When “a Vertical Shaft Passes Through a Bearing and Is Lubricated”
When a vertical shaft passes through a bearing and is lubricated, the bearing must support both radial and axial loads while allowing smooth rotation under continuous fluid contact. Unlike horizontal shafts, a vertical system relies heavily on hydrodynamic film formation and the ability of the lubricant—often water—to remain stable between the rotating and stationary surfaces.
This configuration is widely used in pumps, marine stern tube systems, hydro turbines, vertical mixers, and offshore energy equipment. If lubrication becomes unstable, the shaft will experience metal-to-polymer or metal-to-metal contact, resulting in rapid wear, overheating, vibration, noise, and eventual failure.
Understanding this mechanism is essential for engineers optimizing performance or solving operational problems.
Why Vertical-Shaft Bearing Assemblies Are Critical to System Reliability
Vertical machines rely on bearings that:
Support combined radial + axial loads
Maintain alignment across long shaft spans
Operate in immersion or semi-immersion environments
Resist abrasive particles often present in water
Establish a stable fluid film at low and high speed
Because gravity acts directly along the shaft axis, axial thrust becomes a severe engineering consideration. Even slight misalignment can magnify radial contact forces by 2–3×, accelerating wear dramatically.
In marine and hydro applications, bearings may run 24/7 for 10–25 years, making materials, lubrication behavior, and geometric design critically important.
Where Vertical Bearings Are Used: Marine, Hydro, Pumping Systems, and More
Vertical-shaft bearings appear in systems such as:
• Marine Stern Tubes (propeller shafts)
Submerged, large-diameter bearings requiring stable water flow.
• Hydro Turbine Guide Bearings
Vertical hydro-turbine shafts can exceed 40 tons, demanding excellent hydrodynamic performance.
• Vertical Pumps and Circulators
Municipal pumps, cooling water pumps, deep-well pumps—many run continuously in water with abrasive sand or silt.
• Offshore and Renewable Energy Systems
Wave and tidal generators use polymer water bearings for sustainability.
Each application exposes the bearing to unique lubrication, load, and contamination challenges.
Key Engineering Challenges When a Vertical Shaft Operates Inside a Lubricated Bearing
Even with lubrication present, vertical bearings face multiple failure risks:
1. Hydrodynamic Film Loss at Low Speed
Startup and shutdown phases often create boundary lubrication, increasing wear rates sharply.
2. Axial Load-Induced Contact
Excessive thrust compresses the film, raising friction and temperature.
3. Water Quality Issues
Abrasive particles (sand, silt) may increase wear by 300–500% according to ASTM D5963 rubber wear comparisons.
4. Shaft Misalignment
Even 0.1–0.2 mm misalignment can cause non-uniform pressure distribution along the polymer liner.
5. Lubricant Flow Instability
Insufficient water flow disrupts heat removal and hydrodynamic lift.
Vertical machines must therefore rely on materials with high wear resistance, low friction, and the ability to operate under mixed lubrication.
How Water Lubrication Works: Hydrodynamic Film, Boundary Conditions, and Dry-Start Behavior
Water-lubricated bearings operate under two lubrication regimes:
Hydrodynamic Lubrication (Ideal State)
Rotation creates pressure that forms a water film separating shaft and bearing.
This reduces friction to 0.02–0.05, similar to oil-lubricated systems.
Boundary Lubrication (Critical State)
Occurs during startup, shutdown, and low-speed operation.
Contact increases friction to 0.15–0.25, demanding strong wear-resistant materials.
Water as a Lubricant—Advantages
Non-flammable
Environmentally safe
Immediate heat removal
No oil pollution risk
The challenge: Water is thin (low viscosity), meaning the material must compensate through mechanical design and geometry.
Why Water-Lubricated Polymer Bearings Are Becoming the Industry Standard
Modern polymer bearings have replaced metal bearings in many vertical systems due to:
High Wear Resistance: Polymer composites show 3–8× lower wear in ASTM D5963 tests compared to traditional rubber or metal-based systems.
Superior Dry-Start and Boundary-Lubrication Behavior: Engineered polymer matrices have built-in lubricity reducing startup friction.
Corrosion-Free, Oil-Free Operation: No rust, no galvanic reaction, no oil contamination.
Regulatory Alignment: IMO, EPA VGP, and marine environmental regulations encourage non-oil systems.
Where Techemer / INDRON® Fits Naturally
In water-lubricated applications, material quality decides bearing life.
Techemer’s INDRON® water-lubricated bearings—including the TSTN polymer series—are engineered specifically for vertical shaft environments:
Proven wear resistance significantly higher than common rubber bearings
Stable hydrodynamic film due to optimized groove geometry
Longer lifespan in abrasive waters (river, coastal, desalination)
Used in marine workboats, hydro turbines, and vertical pumps
Ideal for metal-bearing replacement in stern tubes and guide bearings
These products integrate seamlessly into the engineering solutions described—without excessive branding—giving real value to engineers seeking performance improvement.
Engineering Solutions to Improve Reliability When a Vertical Shaft Runs in a Lubricated Bearing
1. Select Advanced Polymer Bearing Materials
High-performance composites can reduce wear volume by 40–70% in abrasive water.
2. Optimize Water Flow to the Bearing
A minimum flow rate ensures cooling and stable lubrication.
Poor water flow is the most common cause of premature failure.
3. Improve Shaft Surface Hardness and Finish
Recommended:
Hardness ≥ HRC 40
Surface roughness 0.3–0.5 μm Ra
4. Use Proper Bearing Clearance
Too tight: film collapse
Too loose: shaft vibration
Engineering guidelines must be followed for thermal and swelling allowances.
5. Incorporate Grooved Bearing Geometry
Helps water circulation and improves hydrodynamic lift at startup.
6. Verify Alignment with Laser Tools
Reduces uneven pressure and prolongs bearing life drastically.
7. Choose Water-Lubricated Bearings for Environmental Compliance
Especially important for vessels operating in protected waters.
Conclusion
When a vertical shaft passes through a bearing and is lubricated, maintaining a stable lubrication regime is essential to preventing vibration, wear, and failure. Modern water-lubricated polymer bearings have become the engineering standard for marine, pump, and hydro applications due to their high wear resistance, environmental benefits, and reliable hydrodynamic performance.
Through proper material selection, lubrication design, and engineering control, vertical bearing systems can achieve longer life, higher efficiency, and lower operational risk.
This article combines engineering fundamentals with modern industry insights to explain how vertical-shaft bearings function, what challenges they face, and why water-lubricated polymer bearings are becoming the preferred solution in many applications.
Understanding What Happens When “a Vertical Shaft Passes Through a Bearing and Is Lubricated”
When a vertical shaft passes through a bearing and is lubricated, the bearing must support both radial and axial loads while allowing smooth rotation under continuous fluid contact. Unlike horizontal shafts, a vertical system relies heavily on hydrodynamic film formation and the ability of the lubricant—often water—to remain stable between the rotating and stationary surfaces.
This configuration is widely used in pumps, marine stern tube systems, hydro turbines, vertical mixers, and offshore energy equipment. If lubrication becomes unstable, the shaft will experience metal-to-polymer or metal-to-metal contact, resulting in rapid wear, overheating, vibration, noise, and eventual failure.
Understanding this mechanism is essential for engineers optimizing performance or solving operational problems.
Why Vertical-Shaft Bearing Assemblies Are Critical to System Reliability
Vertical machines rely on bearings that:
Support combined radial + axial loads
Maintain alignment across long shaft spans
Operate in immersion or semi-immersion environments
Resist abrasive particles often present in water
Establish a stable fluid film at low and high speed
Because gravity acts directly along the shaft axis, axial thrust becomes a severe engineering consideration. Even slight misalignment can magnify radial contact forces by 2–3×, accelerating wear dramatically.
In marine and hydro applications, bearings may run 24/7 for 10–25 years, making materials, lubrication behavior, and geometric design critically important.
Where Vertical Bearings Are Used: Marine, Hydro, Pumping Systems, and More
Vertical-shaft bearings appear in systems such as:
• Marine Stern Tubes (propeller shafts)
Submerged, large-diameter bearings requiring stable water flow.
• Hydro Turbine Guide Bearings
Vertical hydro-turbine shafts can exceed 40 tons, demanding excellent hydrodynamic performance.
• Vertical Pumps and Circulators
Municipal pumps, cooling water pumps, deep-well pumps—many run continuously in water with abrasive sand or silt.
• Offshore and Renewable Energy Systems
Wave and tidal generators use polymer water bearings for sustainability.
Each application exposes the bearing to unique lubrication, load, and contamination challenges.
Key Engineering Challenges When a Vertical Shaft Operates Inside a Lubricated Bearing
Even with lubrication present, vertical bearings face multiple failure risks:
1. Hydrodynamic Film Loss at Low Speed
Startup and shutdown phases often create boundary lubrication, increasing wear rates sharply.
2. Axial Load-Induced Contact
Excessive thrust compresses the film, raising friction and temperature.
3. Water Quality Issues
Abrasive particles (sand, silt) may increase wear by 300–500% according to ASTM D5963 rubber wear comparisons.
4. Shaft Misalignment
Even 0.1–0.2 mm misalignment can cause non-uniform pressure distribution along the polymer liner.
5. Lubricant Flow Instability
Insufficient water flow disrupts heat removal and hydrodynamic lift.
Vertical machines must therefore rely on materials with high wear resistance, low friction, and the ability to operate under mixed lubrication.
How Water Lubrication Works: Hydrodynamic Film, Boundary Conditions, and Dry-Start Behavior
Water-lubricated bearings operate under two lubrication regimes:
Hydrodynamic Lubrication (Ideal State)
Rotation creates pressure that forms a water film separating shaft and bearing.
This reduces friction to 0.02–0.05, similar to oil-lubricated systems.
Boundary Lubrication (Critical State)
Occurs during startup, shutdown, and low-speed operation.
Contact increases friction to 0.15–0.25, demanding strong wear-resistant materials.
Water as a Lubricant—Advantages
Non-flammable
Environmentally safe
Immediate heat removal
No oil pollution risk
The challenge: Water is thin (low viscosity), meaning the material must compensate through mechanical design and geometry.
Why Water-Lubricated Polymer Bearings Are Becoming the Industry Standard
Modern polymer bearings have replaced metal bearings in many vertical systems due to:
High Wear Resistance: Polymer composites show 3–8× lower wear in ASTM D5963 tests compared to traditional rubber or metal-based systems.
Superior Dry-Start and Boundary-Lubrication Behavior: Engineered polymer matrices have built-in lubricity reducing startup friction.
Corrosion-Free, Oil-Free Operation: No rust, no galvanic reaction, no oil contamination.
Regulatory Alignment: IMO, EPA VGP, and marine environmental regulations encourage non-oil systems.
Where Techemer / INDRON® Fits Naturally
In water-lubricated applications, material quality decides bearing life.
Techemer’s INDRON® water-lubricated bearings—including the TSTN polymer series—are engineered specifically for vertical shaft environments:
Proven wear resistance significantly higher than common rubber bearings
Stable hydrodynamic film due to optimized groove geometry
Longer lifespan in abrasive waters (river, coastal, desalination)
Used in marine workboats, hydro turbines, and vertical pumps
Ideal for metal-bearing replacement in stern tubes and guide bearings
These products integrate seamlessly into the engineering solutions described—without excessive branding—giving real value to engineers seeking performance improvement.
Engineering Solutions to Improve Reliability When a Vertical Shaft Runs in a Lubricated Bearing
1. Select Advanced Polymer Bearing Materials
High-performance composites can reduce wear volume by 40–70% in abrasive water.
2. Optimize Water Flow to the Bearing
A minimum flow rate ensures cooling and stable lubrication.
Poor water flow is the most common cause of premature failure.
3. Improve Shaft Surface Hardness and Finish
Recommended:
Hardness ≥ HRC 40
Surface roughness 0.3–0.5 μm Ra
4. Use Proper Bearing Clearance
Too tight: film collapse
Too loose: shaft vibration
Engineering guidelines must be followed for thermal and swelling allowances.
5. Incorporate Grooved Bearing Geometry
Helps water circulation and improves hydrodynamic lift at startup.
6. Verify Alignment with Laser Tools
Reduces uneven pressure and prolongs bearing life drastically.
7. Choose Water-Lubricated Bearings for Environmental Compliance
Especially important for vessels operating in protected waters.
Conclusion
When a vertical shaft passes through a bearing and is lubricated, maintaining a stable lubrication regime is essential to preventing vibration, wear, and failure. Modern water-lubricated polymer bearings have become the engineering standard for marine, pump, and hydro applications due to their high wear resistance, environmental benefits, and reliable hydrodynamic performance.
Through proper material selection, lubrication design, and engineering control, vertical bearing systems can achieve longer life, higher efficiency, and lower operational risk.
no data
you might like
no data
Leave a Comment
we welcome custom designs and ideas and is able to cater to the specific requirements.
